发布时间：2023-01-04

文章标题：全真空装备6 -Vacuum: power-free vacuum suitcase for sample transfer and characterization

内容：





Vacuum 209, 2023, 111804

https://doi.org/10.1016/j.vacuum.2023.111804



Highlights of this work：

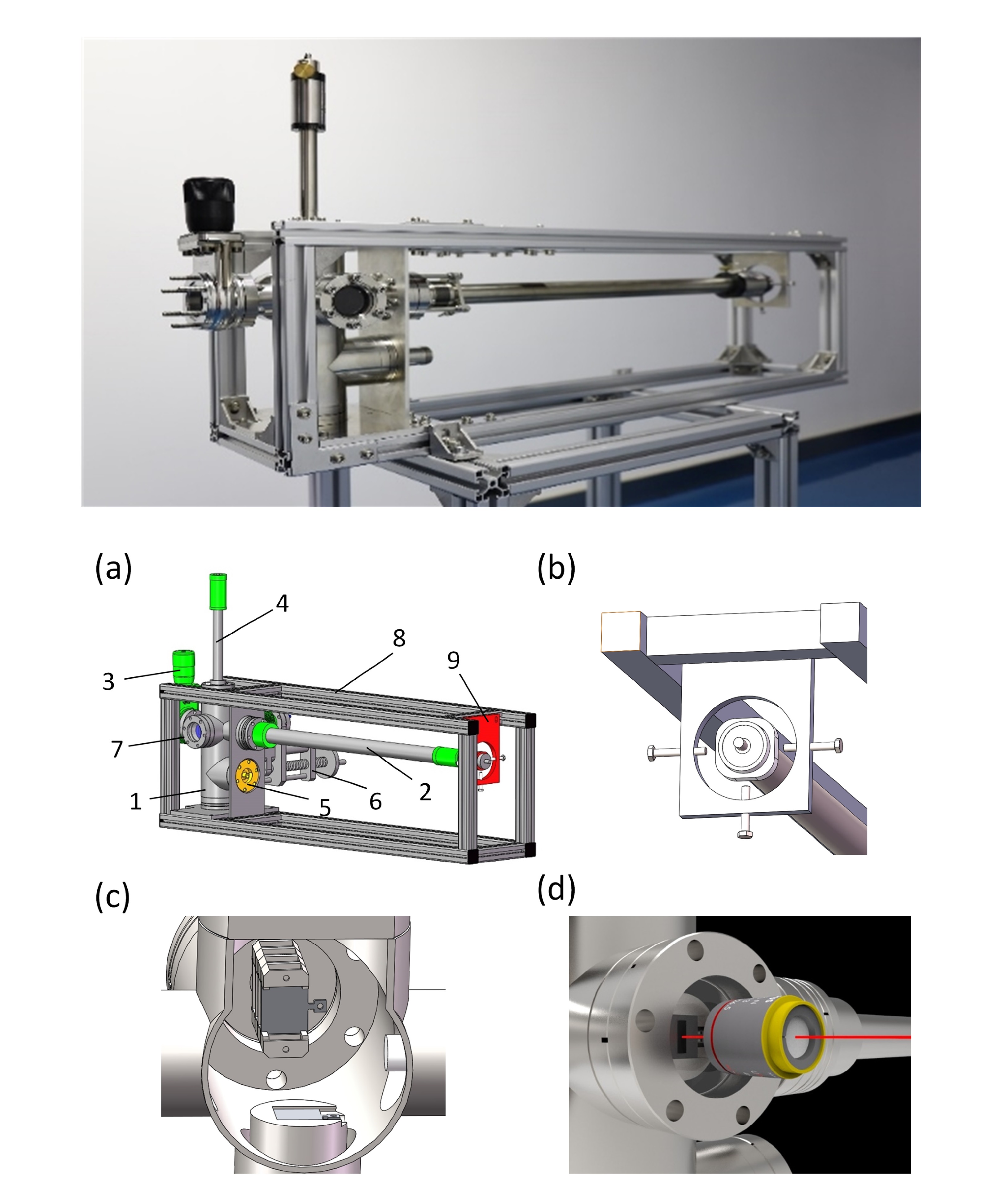

• A NEG-only multifunctional vacuum suitcase for both sample storage and cryogenic optical characterizations is reported.

• The test of prototype system shows it could be maintained at 10−8 mbar level for 5 h and 10−7 mbar level for more 20 days.

• The finite element simulation and test results shows the sample temperature could reach ∼80 K.

• Sample transfer between MBE and STM was successfully performed, confirming it could facilitate the study of sensitive 2D materials.





该工作主要由博士生吴迪和硕士生王栋立同学完成，本科生冯松杰同学独立完成了冷台的有限元仿真工作。

基于该项工作，我们获得了一项中国发明专利授权，专利号：ZL 202010224826.1
