发布时间：

2025-11-10

DOI码：

10.1049/iet-gtd.2019.0642

论文名称：

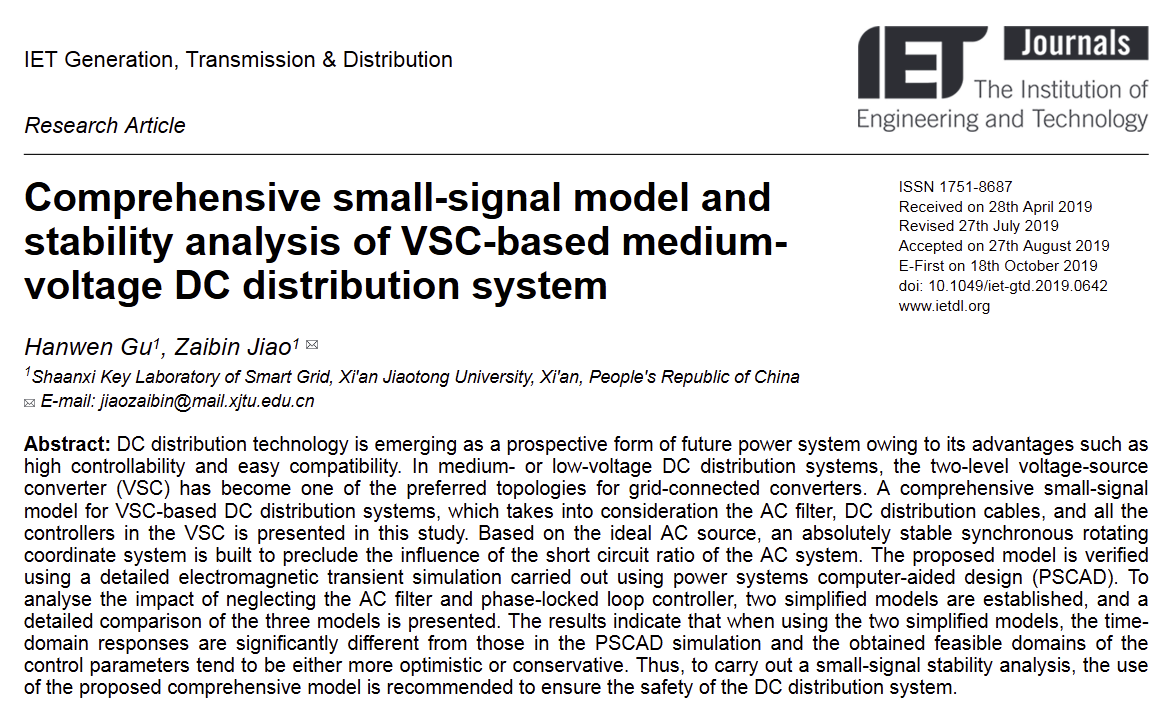

Comprehensive Small‐Signal Model and Stability Analysis of VSC‐Based Medium‐Voltage DC Distribution System

发表刊物：

IET Generation, Transmission & Distribution

摘要：

DC distribution technology is emerging as a prospective form of future power system owing to its advantages such ashigh controllability and easy compatibility. In medium- or low-voltage DC distribution systems, the two-level voltage-sourceconverter (VSC) has become one of the preferred topologies for grid-connected converters. A comprehensive small-signalmodel for VSC-based DC distribution systems, which takes into consideration the AC filter, DC distribution cables, and all thecontrollers in the VSC is presented in this study. Based on the ideal AC source, an absolutely stable synchronous rotatingcoordinate system is built to preclude the influence of the short circuit ratio of the AC system. The proposed model is verifiedusing a detailed electromagnetic transient simulation carried out using power systems computer-aided design (PSCAD). Toanalyse the impact of neglecting the AC filter and phase-locked loop controller, two simplified models are established, and adetailed comparison of the three models is presented. The results indicate that when using the two simplified models, the time-domain responses are significantly different from those in the PSCAD simulation and the obtained feasible domains of thecontrol parameters tend to be either more optimistic or conservative. Thus, to carry out a small-signal stability analysis, the useof the proposed comprehensive model is recommended to ensure the safety of the DC distribution system.

第一作者：

Hanwen Gu

论文类型：

期刊论文

通讯作者：

Zaibin Jiao

卷号：

13

期号：

20

页面范围：

4642-4649, IET Generation, Transmission & Distribution

是否译文：

否

发表时间：

2019-10-15

收录刊物：

SCI
